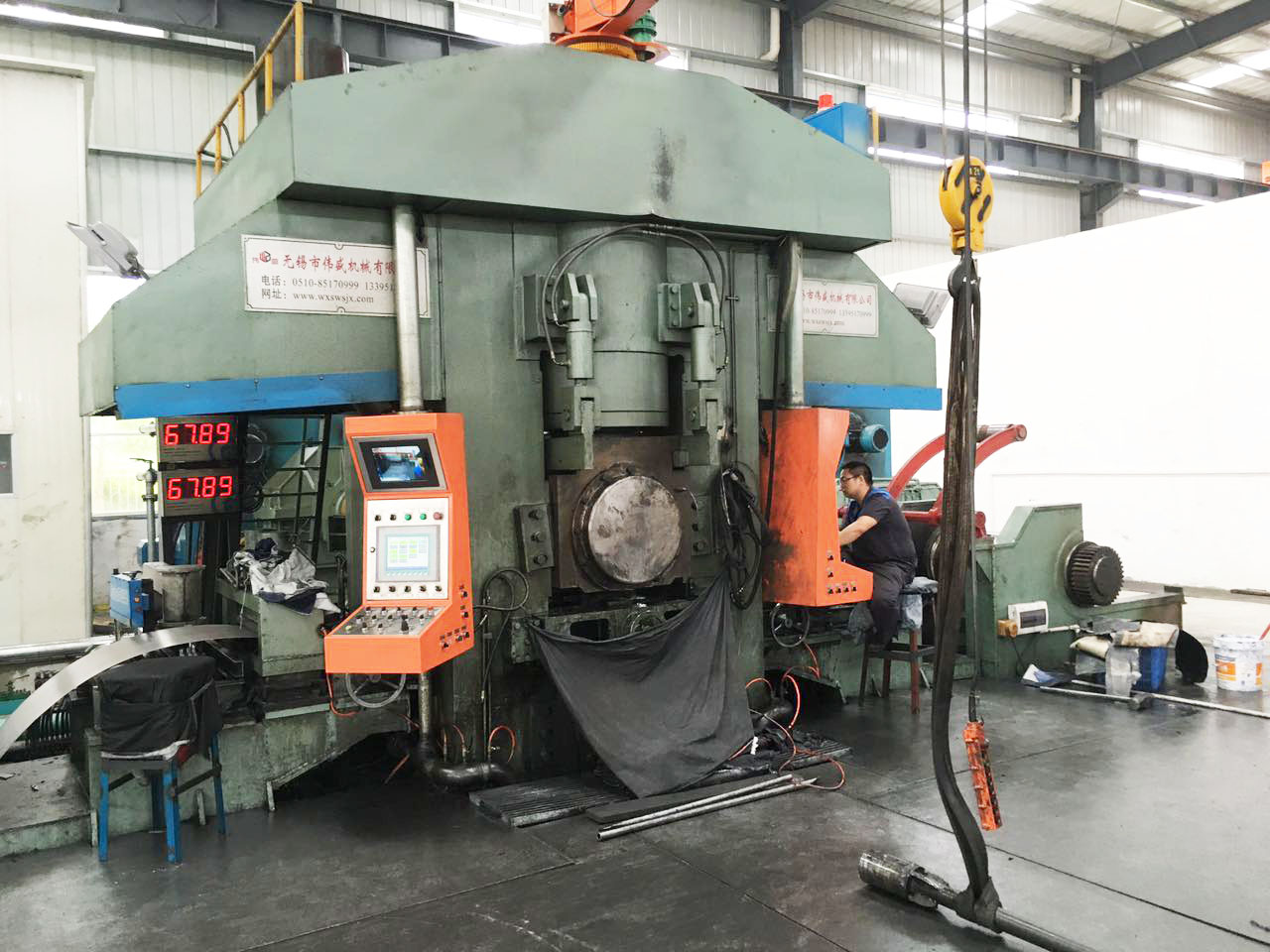

φ180/φ780x950四輥AGC可逆冷軋機
φ180/φ780x950四輥AGC可逆冷軋機(不銹鋼)
φ180/φ780x950four roll AGC reversing cold mill(stainless steel )
一用途
ONE.use
本機型為支承輥傳動，機架剛度大，輥系采用軋機專用FCD軸承，適用于寬板粗軋及精軋，是軋制不銹鋼的常用設備。
The machine is a supposing rod transmisiion, Rack stiffness,FCD bearing special for rolling mill, Suitable for Wide Plate Roughing and finishing mill, it is a common device for rolling stainless steel
二設備組成及結構特點
TWO. Equipment composition and structure characteristics
本機為四輥冷軋機，由壓下裝置、機架裝置、輥系部分、平衡裝置、主傳動、萬向軸托架、換輥裝置等組成。其主要功能是軋制帶材，滿足一定厚度。設備組成，由液壓漲縮放卷機、進料工藝平臺、四輥軋機、支承輥液壓換輥裝置、出料工藝平臺、龍門架實心卷取機、普通液壓系統、AGC液壓系統、稀油站、油氣潤滑系統、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
This machine is four roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive,universal shaft bracket and a roll changing device.
Its main function is to roll strip, to meet certain thickness. Device composition,by hydraulic up scaling machine, feeding technology platform, four roll mill, hydraulic roll changing device of supporting roller, discharge technology platform, Longmen frame solid coiling machine , general hydraulic system, AGC hydraulic system,
thin oil station, oil and gas lubrication system, process lubrication station, electronic control unit, thickness gauge, anchor bolt etc.
三技術參數
THREE.Technical parameter
軋制力： 1500T 傳動形式： 支承輥傳動 Rolling force: 1500T
Drive form： Supporting roller drive
進料規格： 3x600-850mm 成品規格： 0.25x600-850mm
Feeding standard:3x600-850mm Finished product specifications:0.25x600-850mm
機架端面： 480x580 rack end face:480x580
軋制速度： 250m/min Rolling speed:250m/min
工作輥規格： φ180x950 Work roll specifications: φ180x950
支承輥規格： φ780x900 Supporting roller size:φ780x900
主電機： Z560-4B 800KW 2臺 AGC壓下油缸： φ720x70
Main motor:Z560-4B 800KW two AGC pressure cylinder: φ720x70
齒輪箱： 硬齒面加強型組合齒輪箱 十字萬向軸： SWC550
Gear box: Hard surface strengthening combined gear box Cross universal shaft:SWC550
卷取機： 龍門架實心卷取機φ500x950 普通液壓工作壓力： 10Mpa
Coiling machine:Longmen solid body coiling machineφ500x950 General hydraulic pressure: 10Mpa
卷取張力： 22T AGC液壓工作壓力： 18Mpa-21Mpa
Coiling tension: 22T AGC hydraulic pressure:18Mpa-21Mpa
卷重： 17T 軋制方式： 可逆
Volume weight: 17T Rolling way:reversible
卷取減速機： ZLY710 電控： 控制器西門子6R80，PLC西門子
Winding speed reducer:ZLY710 Electric control:Controller SIEMENS 6R80, PLC SIEMENS
卷取電機： Z560-5A 900KW 2臺 Winding motor:Z560-5A 900KW two
