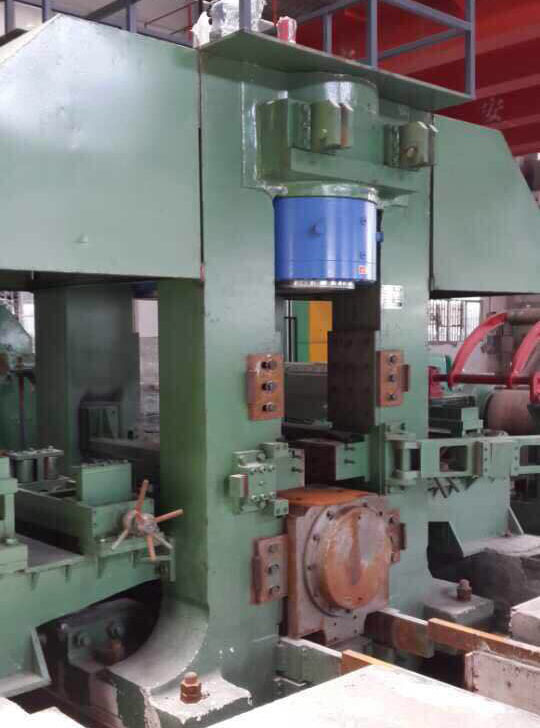

        φ150/φ600X650四輥AGC可逆冷軋機



        φ150/φ600x650四輥AGC可逆冷軋機(普碳鋼)
        ф150/ф600×650 four roll AGC reversing cold mill(plain carbon steel)

        一用途
        ONE.use
        本機型為支承輥傳動,機架剛度大,輥系采用軋機專用FCD軸承,適用于寬板粗軋及精軋,是軋制普碳鋼的常用設備。
        The machine is a supposing rod transmisiion, Rack stiffness,FCD bearing special for rolling mill,  Suitable for Wide Plate Roughing and finishing mill,
         it is a common device for rolling plain carbon steel.


        二設備組成及結構特點
        TWO. Equipment composition and structure characteristics
        本機為四輥冷軋機,由壓下裝置、機架裝置、輥系部分、平衡裝置、主傳動、萬向軸托架、換輥裝置等組成。其主要功能是軋制帶材,滿足一定厚度。設備組成,由液壓漲縮放卷機、進料工藝平臺、四輥軋機、支承輥液壓換輥裝置、出料工藝平臺、液壓四棱錐卷取機、普通液壓系統、AGC液壓系統、稀油站、油氣潤滑系統、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
        This machine is four roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive, Universal shaft bracket and a roll changing device.
         Its main function is to roll strip, to meet certain thickness.  Device composition,by  hydraulic up scaling machine, feeding technology platform, four roll mill, hydraulic roll changing device of supporting roller, discharge technology platform, Four pyramid hydraulic coiler, general hydraulic system, AGC hydraulic system,
         thin oil station, oil and gas lubrication system, process lubrication station,  electronic control unit, thickness gauge, anchor bolt etc.



        三技術參數
        THREE.technical parameter
        軋制力: 700T 傳動形式: 支承輥傳動  Rolling force: 700T      Drive form: Supporting roller drive
        進料規格: 3x500-620mm 成品規格: 0.25x500-620mm  Feeding standard:3x500-620mm   Finished product specifications:0.25x500-620mm
        軋制速度: 230m/min    Rolling speed:230m/min
        工作輥規格: φ150x700  Work roll specifications: φ150x700
        支承輥規格: φ600x650    Supporting roller size:φ600x650
        主電機: Z450-42  500KW   AGC壓下油缸: φ480x70  Main motor:Z450-42  500KW   AGC pressure cylinder: φ480x70
        主減速機 硬齒面ZLY560-2Z 十字萬向軸: SWC350  Main speed reducer Hardened ZLY560-2Z   Cross universal shaft:SWC350
        人字齒輪箱: A=900mm,稀有自潤滑 普通液壓工作壓力: 10Mpa  Herringbone gear box:A=900mm,Rare self lubrication General hydraulic pressure: 10Mpa
        卷取機: 液壓四棱錐 AGC液壓工作壓力: 18Mpa-21Mpa  Coiling machine:  Hydraulic four pyramid  AGC hydraulic pressure:18Mpa-21Mpa
        卷取張力: 10T 軋制方式: 可逆  Coiling tension: 10T Rolling way:reversible
        卷重: 8T 電控: 控制器西門子6R80,PLC西門子  Volume weight: 8T  Electric control: Controller SIEMENS 6R80, PLC SIEMENS
        卷取減速機: 自制ZQ100    Winding speed reducer:Homemade ZQ100
        卷取電機: Z4-315-42  250KW  2臺  Winding motor:Z4-315-42  250KW  two
