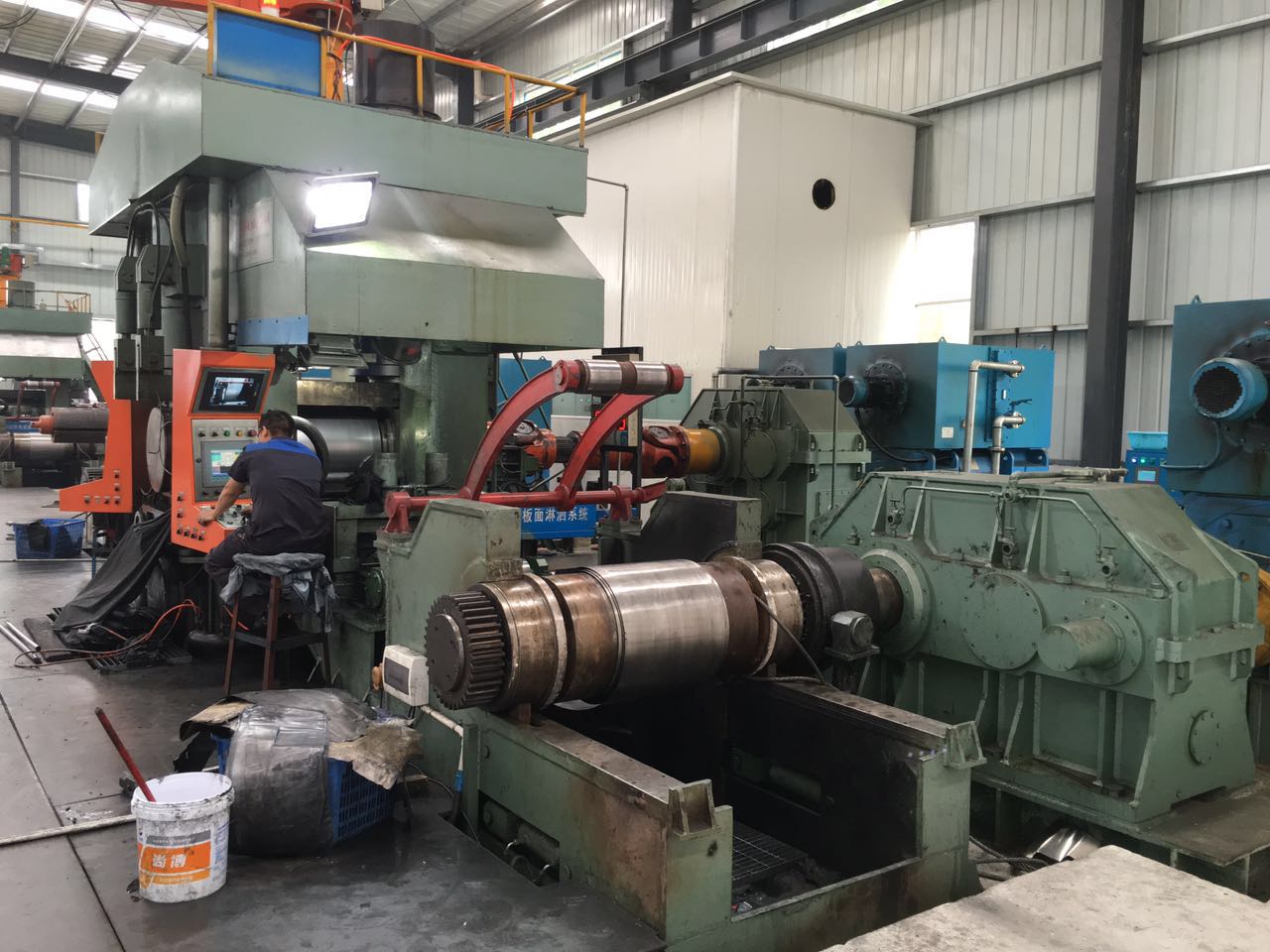

        φ160/φ650x750四輥AGC可逆冷軋機



        φ160/φ650x750四輥AGC可逆冷軋機(不銹鋼)
        φ160/φ650x750four roll AGC reversing cold mill(stainless steel )

        一用途
        ONE.use
        本機型為支承輥傳動,機架剛度大,輥系采用軋機專用FCD軸承,適用于寬板粗軋及精軋,是軋制不銹鋼的常用設備。
        The machine is a supposing rod transmisiion, Rack stiffness,FCD bearing special for rolling mill,  Suitable for Wide Plate Roughing and finishing mill, it is a common device for rolling stainless steel

        二設備組成及結構特點
        TWO. Equipment composition and structure characteristics
        本機為四輥冷軋機,由壓下裝置、機架裝置、輥系部分、平衡裝置、主傳動、萬向軸托架、換輥裝置等組成。其主要功能是軋制帶材,滿足一定厚度。設備組成,由液壓漲縮放卷機、進料工藝平臺、四輥軋機、支承輥液壓換輥裝置、出料工藝平臺、龍門架實心卷取機、普通液壓系統、AGC液壓系統、稀油站、油氣潤滑系統、工藝潤滑站、電控、測厚儀、機組地腳螺栓等組成。
        This machine is four roller cold rolling mill, which is composed of a press down device, a machine frame, a roller system, a balance device, a main drive,universal shaft bracket  and a roll changing device.
         Its main function is to roll strip, to meet certain thickness.  Device composition,by  hydraulic up scaling machine, feeding technology platform, four roll mill, hydraulic roll changing device of supporting roller, discharge technology platform, Longmen frame solid coiling machine , general hydraulic system, AGC hydraulic system,
         thin oil station, oil and gas lubrication system, process lubrication station,  electronic control unit, thickness gauge, anchor bolt etc.


        三技術參數
        THREE. Technical parameter
        軋制力: 900T 傳動形式: 支承輥傳動  Rolling force: 900T      Drive form: Supporting roller drive
        進料規格: 3x500-650mm 成品規格: 0.25x500-650mm  Feeding standard:3x500-650mm   Finished product specifications:0.25x500-650mm
        機架端面: 420x480    rack end face:420x480
        軋制速度: 230m/min    Rolling speed:230m/min
        工作輥規格: φ160x780  Work roll specifications: φ160x780
        支承輥規格: φ650x750    Supporting roller size:φ650x750
        主電機: Z450-42  500KW  2臺 AGC壓下油缸: φ600x70  Main motor:Z450-42  500KW two   AGC pressure cylinder: φ600x70
        齒輪箱: 硬齒面加強型組合齒輪箱 十字萬向軸: SWC390  Gear box: Hard surface strengthening combined gear box  Cross universal shaft:SWC390
        卷取機: 龍門架實心卷取機φ500x750 普通液壓工作壓力: 10Mpa  Coiling machine:Longmen solid body coiling machineφ500x750 Rare self lubrication General hydraulic pressure: 10Mpa
        卷取張力: 10T AGC液壓工作壓力: 18Mpa-21Mpa  Coiling tension: 10T AGC hydraulic pressure:18Mpa-21Mpa
        卷重: 12T 軋制方式: 可逆  Volume weight: 12T Rolling way:reversible
        卷取減速機: 硬齒面ZLY630 電控: 控制器西門子6R80,PLC西門子  Winding speed reducer:Hardened surfaceZLY630 Electric control:Controller SIEMENS 6R80, PLC SIEMENS

        卷取電機: Z500-4A  630KW  2臺    Winding motor:Z500-4A  630KW  two
